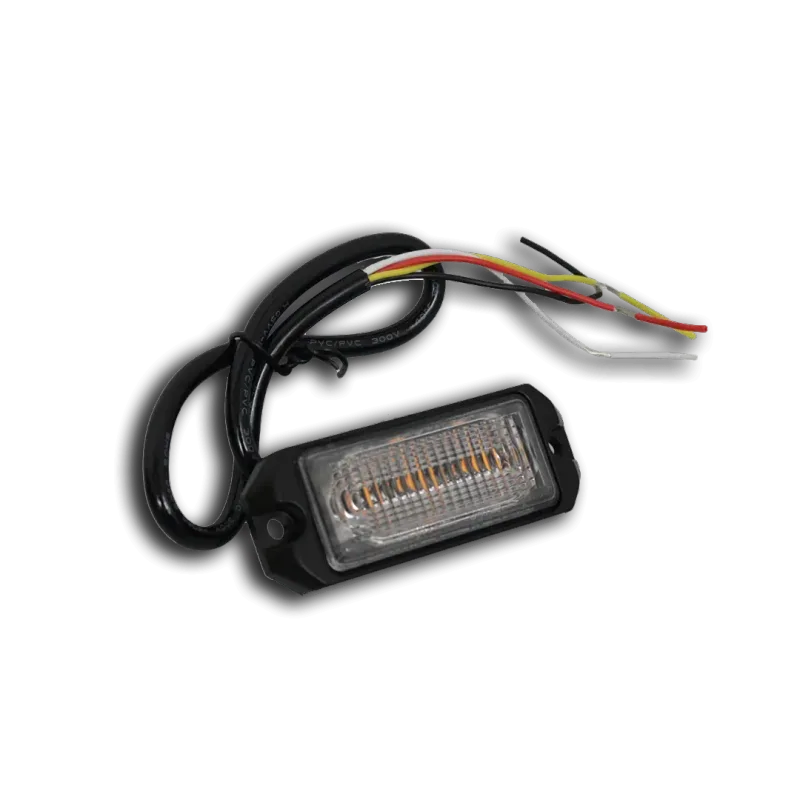

3 LED Strobe Light- Amber
€62
Towing Equipment · Dublin 12, Co. Dublin
Description
Product Description
3 LED strobe unit featuring ultra-bright LEDs, 26 different flash patterns and the ability to synchronise with other units. Up to 12 units can be connected to provide either synchronised or alternate flashing.
The unit features an aluminium base for excellent heat dissipation and a durable polycarbonate lens.
Key Specifications
LEDs
3
Power
9W, 12W, 18W
Voltage
12 ~ 24V DC
Lens
Polycarbonate
Base
Aluminium
IP Rating
IP67
Flash Patterns
26
Mounting
Surface Mount
Operating Temperature
-30°C ~ +60°C
Wiring & Pattern Selection
Red
+DC Voltage
Black
Ground
Yellow
Pattern Selection
White
Synchronisation. Connect the white wire of all heads together.
Pattern Selection
Apply the yellow wire to the black wire to select patterns.
Less than 1 second: Select next pattern.
1 to 3 seconds: Select previous pattern.
More than 5 seconds: Turn off.
When power is re-applied, the unit will resume the previous pattern.
Synchronisation
