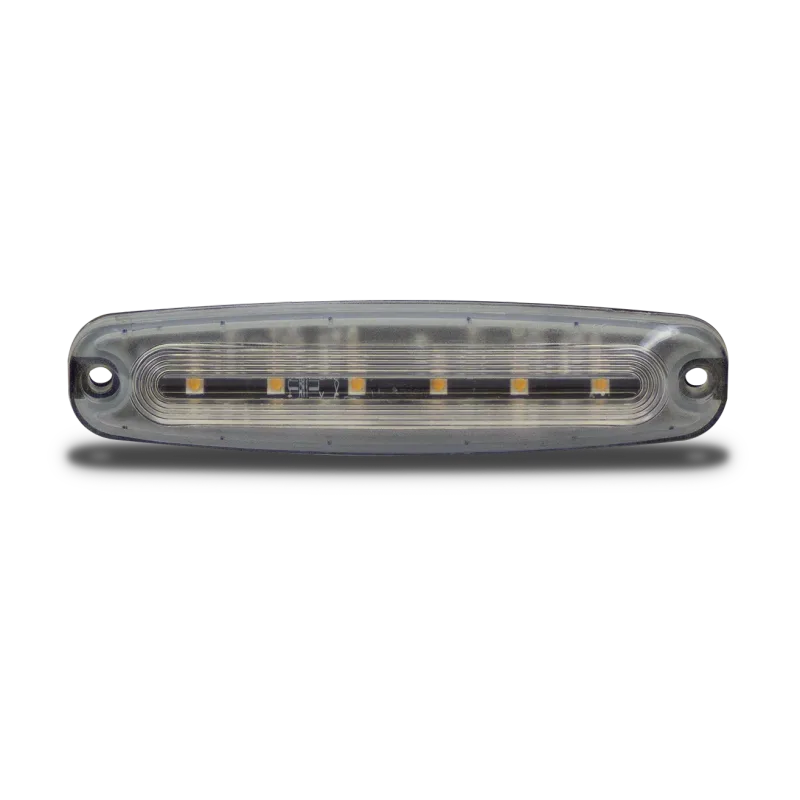

6 LED Low Profile Strobe Light- Amber
€61
Towing Equipment · Dublin 12, Co. Dublin
Description
Product Description
Our Slimline 6 LED strobe unit features ultra-bright LEDs, 26 different flash patterns and the ability to synchronise with other units. Up to 12 units can be connected to provide either synchronised or alternate flashing.
The low-profile body allows the units to be fitted discreetly around the vehicle.
Key Specifications
LEDs
6 x 3W 3535 SMD
Power
9W, 12W, 18W
Voltage
12 ~ 24V DC
Lens
Polycarbonate
IP Rating
IP67
Flash Patterns
26
Mounting
Surface Mount
Operating Temperature
-30°C ~ +60°C
Wiring & Pattern Selection
Red
+DC Voltage
Black
Ground
Yellow
Pattern Selection
White
Synchronisation. Connect the white wire of all heads together.
Pattern Selection
Apply the yellow wire to the black wire to select patterns.
Less than 1 second: Select next pattern.
1 to 3 seconds: Select previous pattern.
More than 5 seconds: Turn off.
When power is re-applied, the unit will resume the previous pattern.
Synchronisation
Up to 12 units can be synchronised to provide either synchronised or alternate flashing. Connect the white wire of all heads together.
